Shipping Container Dimensions

Internal and External Intermodal Container Dimensions

Shipping Container Dimensions & Specifications:

Shipping containers are held to very specific dimensional standards to ensure they can be safely stacked on top of, and below, any other shipping container in the world. Standard shipping containers are 8' wide (2.44m), and are measured in TEU's (twenty-foot equivalent units). Ocean cargo containers are held to a rigid standard to ensure that there are no issues during shipping.  Each intermodal shipping container (sometimes called "conex" containers) must be able to not only stack perfectly on a cargo ship, but also lock into chassis trailers safely and securely stack on rail cars.  The International Organization for Standardization (ISO) sets the standards for shipping container dimensions (via ISO 668).

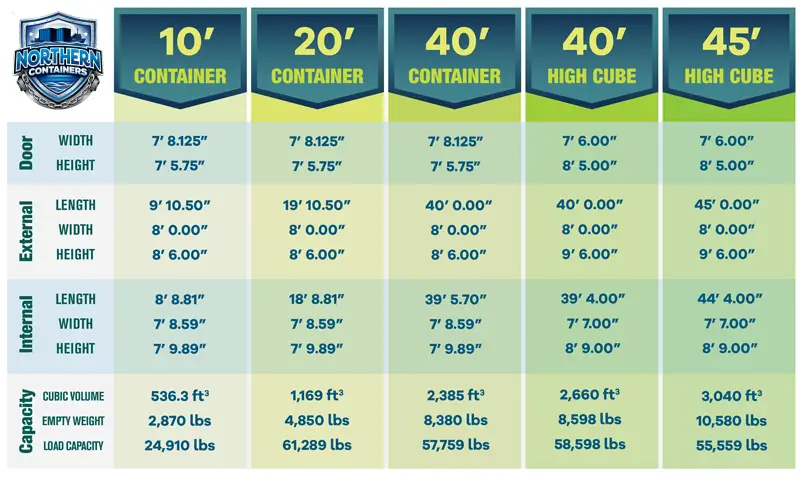

Imperial Shipping Container Dimensions (feet/inches):

Shipping container dimensions chart, intermodal shipping container dimensions, used shipping container dimensions, 10 ft container dimensions, 20 ft container dimensions, 40 ft container dimensions, 40 ft high cube container dimensions, 45 ft high cube container dimensions, shipping container dimensions imperial, internal and external shipping container dimensions, shipping container door height, shipping container inside height, shipping container inside width, conex dimensions, shipping container empty weight

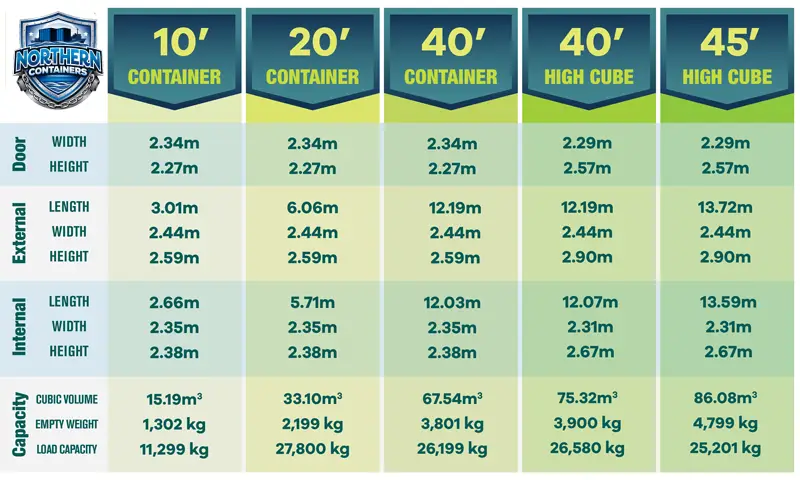

Metric Shipping Container Dimensions:

Metric Shipping container dimensions chart, intermodal shipping container dimensions, used shipping container dimensions, 10 ft container dimensions, 20 ft container dimensions, 40 ft container dimensions, 40 ft high cube container dimensions, 45 ft high cube container dimensions, shipping container dimensions metric, internal and external shipping container dimensions, shipping container door height, shipping container inside height, shipping container inside width, conex dimensions, shipping container empty weight

Shipping Container Dimensions by Size:

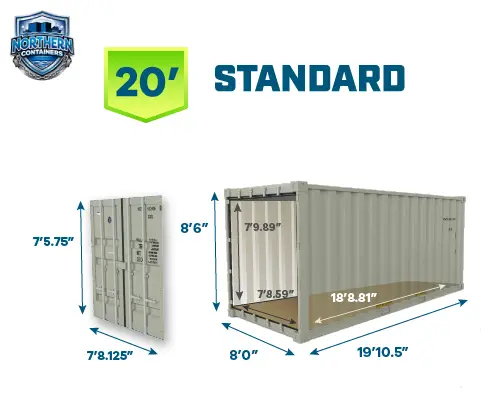

8' x 20' Shipping Container Dimensions

20ft shipping container imperial dimensions, 20ft dimensions, 20 ft shipping container, used 20 foot container, 20' shipping container dimensions

8' x 20' Shipping Container Dimensions
(imperial)

20ft shipping container metric dimensions, 20ft dimensions, 20 ft shipping container, used 20 foot container, 20' shipping container dimensions

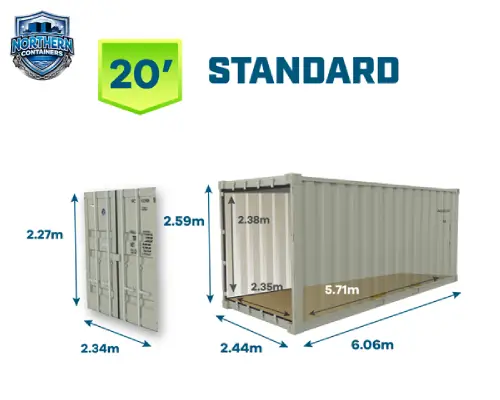

8' x 20' Shipping Container Dimensions
(metric)

External
Length: 19' 10.50" (6.06m)
Width: 8' 0.00" (2.44m)
Height: 8' 6.00" (2.59m)

Internal
Length: 18' 8.81" (5.71m)
Width: 7' 8.59" (2.35m)
Height: 7' 9.89" (2.38m)

Door
Width: 7' 8.125" (2.34m)
Height: 7' 5.75" (2.27m)

Capacity
Cubic Volume: 1,169 ft. (33.10m)
Empty Weight: 4,850 lbs. (2,199 kg)
Load Capacity: 61,289 lbs. (27,800 kg)

8' x 40' Shipping Container Dimensions

40ft shipping container imperial dimensions, 40ft dimensions, 40 ft shipping container, used 40 foot container, 40' shipping container dimensions

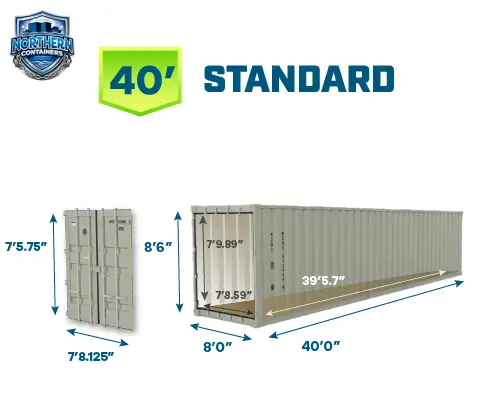

8' x 40' Shipping Container Dimensions
(imperial)

40ft shipping container metric dimensions, 40ft dimensions, 40 ft shipping container, used 40 foot container, 40' shipping container dimensions

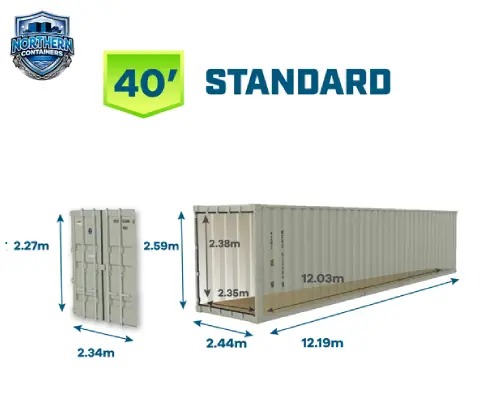

8' x 40' Shipping Container Dimensions
(metric)

External
Length: 40' 0.00" (12.19m)
Width: 8' 0.00" (2.44m)
Height: 8' 6.00" (2.59m)

Internal
Length: 39' 5.70" (5.71m)
Width: 7' 8.59" (2.35m)
Height: 7' 9.89" (2.38m)

Door
Width: 7' 8.125" (2.34m)
Height: 7' 5.75" (2.27m)

Capacity
Cubic Volume: 2,385 ft. (67.54m)
Empty Weight: 8,380 lbs. (3,801 kg)
Load Capacity: 57,759 lbs. (26,199 kg)

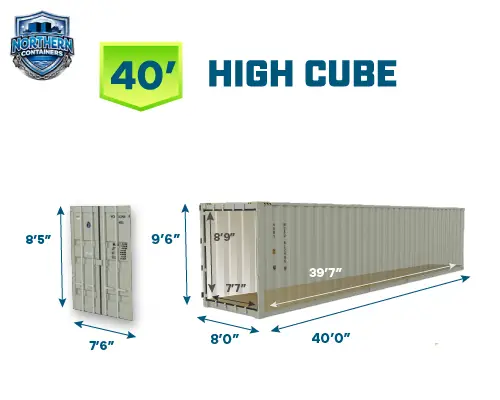

8' x 40' High Cube Container Dimensions

40ft high cube, 40ft high cube imperial dimensions, 40 ft high cube shipping container, used 40 foot high cube container, 40' high cube shipping container dimensions

8' x 40' High High Cube Container Dimensions
(imperial)

40ft high cube, 40ft high cube metric dimensions, 40 ft high cube shipping container, used 40 foot high cube container, 40' high cube shipping container dimensions

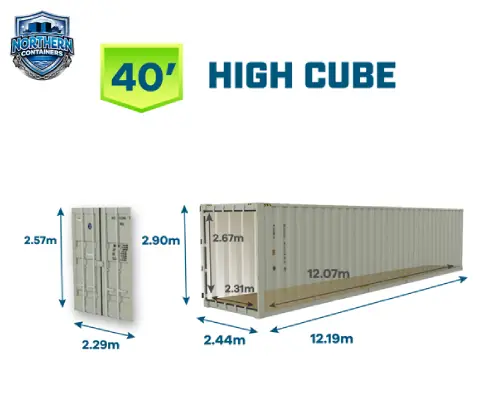

8' x 40' High Cube Container Dimensions
(metric)

External
Length: 40' 0.00" (12.19m)
Width: 8' 0.00" (2.44m)
Height: 9' 6.00" (2.90m)

Internal
Length: 39' 5.70" (12.07m)
Width: 7' 7.00" (2.31m)
Height: 8' 9.00" (2.67m)

Door
Width: 7' 6.00" (2.29m)
Height: 8' 5.00" (2.57m)

Capacity
Cubic Volume: 2,660 ft. (75.32m)
Empty Weight: 8,598 lbs. (3,900 kg)
Load Capacity: 58,598 lbs. (26,580 kg)

8' x 45' High Cube Container Dimensions

45ft high cube, 45ft high cube imperial dimensions, 45 ft high cube shipping container, used 45 foot high cube container, 45' high cube shipping container dimensions

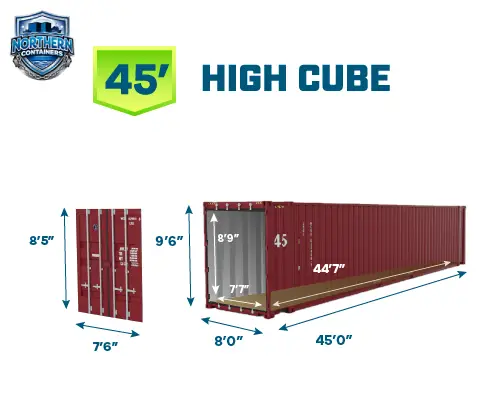

8' x 40' High High Cube Container Dimensions
(imperial)

45ft high cube, 45ft high cube metric dimensions, 45 ft high cube shipping container, used 45 foot high cube container, 45' high cube shipping container dimensions

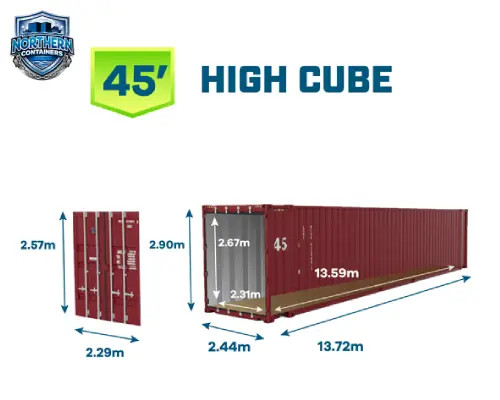

8' x 40' High Cube Container Dimensions
(metric)

External
Length: 40' 0.00" (13.72m)
Width: 8' 0.00" (2.44m)
Height: 9' 6.00" (2.90m)

Internal
Length: 39' 5.70" (13.59m)
Width: 7' 7.00" (2.31m)
Height: 8' 9.00" (2.67m)

Door
Width: 7' 6.00" (2.29m)
Height: 8' 5.00" (2.57m)

Capacity
Cubic Volume: 3,040 ft. (86.08m)
Empty Weight: 10,580 lbs. (4,799 kg)
Load Capacity: 55,559 lbs. (25,201 kg)

8' x 10' Shipping Container Dimensions

10ft shipping container imperial dimensions, 10ft dimensions, 40 ft shipping container, used 10 foot container, 10' shipping container dimensions

8' x 10' Shipping Container Dimensions
(imperial)

10ft shipping container metric dimensions, 10ft dimensions, 40 ft shipping container, used 10 foot container, 10' shipping container dimensions

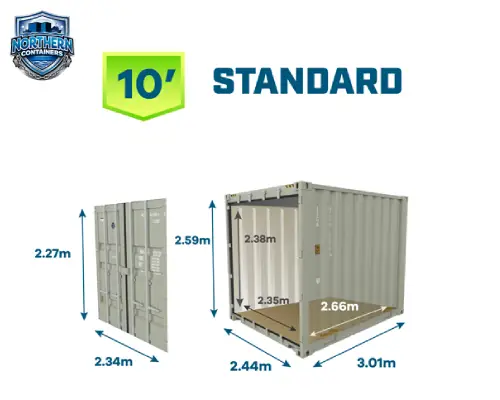

8' x 10' Shipping Container Dimensions
(metric)

External
Length: 9' 10.50" (3.01m)
Width: 8' 0.00" (2.44m)
Height: 8' 6.00" (2.59m)

Internal
Length: 8' 8.81" (2.66m)
Width: 7' 8.59" (2.35m)
Height: 7' 9.89" (2.38m)

Door
Width: 7' 8.125" (2.34m)
Height: 7' 5.75" (2.27m)

Capacity
Cubic Volume: 563.3 ft. (15.19m)
Empty Weight: 2,870 lbs. (1,302 kg)
Load Capacity: 24,910 lbs. (11,299 kg)

Shipping-Container-Doors-Information-Container-Specificaiton-Information

More Information About Shipping Containers

The information listed on intermodal shipping container doors is standardized so that the container can be handled at any port in the world. From the manufacturer information on the CSC plate, to the size & capacity information, to the container identification number, everything is standardized on a shipping container. Furthermore, to ensure the same equipment can safely handle the containers anywhere in the world, shipping containers are held to a very specific set of specifications and dimensions.

Safe Handling Instructions

A sticker or plate to identify such things as High Cube containers, hazardous cargo, or other such labels.  High Cube shipping containers will also have yellow decals at the top of the frame on each end, to make the extended height more noticeable. High Cube containers have an outside height of 9'6" or 2.9m (one foot taller than standard shipping containers, which are 8'6", or roughly 2.6m, tall).

CSC Plate

The Convention for Safe Containers (CSC) Plate includes information on the date and location of manufacture, as well as other specifications.  Learn more about the Convention for Safe Containers on the International Maritime Organization's website. And make sure to purchases CSC survey if you need to use your shipping container for export.

Locking Rods & Handles

Locking rods are bolted to the exterior of the shipping container cargo doors and frame, that seal the door tightly when twisted closed and clasped. A broken or bent locking rod can mean that a door won't seal properly.  We guarantee doors will seal on every shipping container we sell, but it's always a good idea to grease the hinges and make sure the door frame is square.

Container Identification Number

Each shipping container has a unique identification number. The first three letters represent the container owner (registered with the Bureau International des Containers "BIC"), and those are followed by a "U" for dry containers, and then six more numerical digits for the unit number.  The 7th number is a "check digit" used by calculating the value of each letter and number in the ID. Check your check digit with BIC.

Size and Capacity Specifications

To ensure safe handling, and stacking on ships, containers should not be loaded heavier than the weight specifications listed on the door and CSC plate.  Please note, however, that local shipping weight regulations may be much lower than the maximum payload of the container. For instance, many shipping containers can handle over 25,000 kg of cargo, but loading them that heavy would exceed weight regulations on most Canadian roads.

Rubber Door Gasket

Each of the shipping container cargo doors is fully surrounded by a rubber gasket.  The gasket allows the steel doors to be shut tightly to prevent both weather getting into the the container. It also helps keep cargo from spilling out if the freight shifts or pallets fail during transport. Good gaskets are essential to a cargo container being wind/water tight. Cargo door gaskets are covered by our 1-year warranty.
